High-Detail Resin 3D Printer — Creality LD-002H

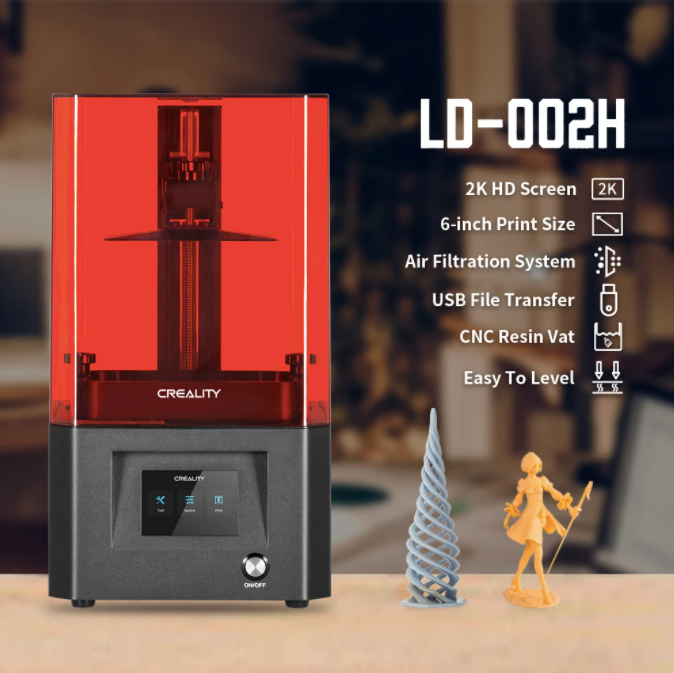

The Creality LD-002H is a UV resin (MSLA) 3D printer that delivers incredible detail and surface finish at a fraction of the cost of industrial resin printers. Its 2K mono LCD screen provides fast layer curing while the upgraded UV light source ensures uniform exposure across the entire build plate.
Key features
- 2K monochrome LCD: Faster curing and longer screen life than RGB LCDs
- XY resolution: 51 µm — captures tiny details like jewelry, miniatures, and dental models
- Upgraded UV module: More uniform light distribution for consistent curing
- Air filtration: Built-in carbon filter reduces resin odor
- 130 × 82 × 160 mm build volume
FDM vs Resin — when to choose resin
| Property | Resin (LD-002H) | FDM (Ender 3 V2) |
|---|---|---|
| Detail level | Extremely high (51 µm) | Good (100–400 µm) |
| Surface finish | Smooth, near-injection-mold | Visible layer lines |
| Build volume | Small (130 × 82 × 160 mm) | Large (220 × 220 × 250 mm) |
| Material cost | Higher (resin) | Lower (filament) |
| Post-processing | Wash + UV cure required | Minimal |
| Best for | Miniatures, jewelry, dental | Functional parts, large prints |
Recommended consumables
Use Creality UV Resin (available in Black, White, Grey, Transparent, and Skin).
Technical specifications
| Technology | MSLA (Masked Stereolithography) |
|---|---|
| Build Volume | 130 × 82 × 160 mm |
| XY Resolution | 51 µm (2K LCD) |
| Layer Thickness | 0.01–0.2 mm |
| Light Source | UV LED array (405 nm) |
| Connectivity | USB |
Frequently Asked Questions
Is resin printing messy?
It requires more care than FDM. You'll need gloves, IPA for washing, and a UV curing station. But the detail is unmatched.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
