SIM808 GSM GPRS GPS IOT Board Arduino Compatible

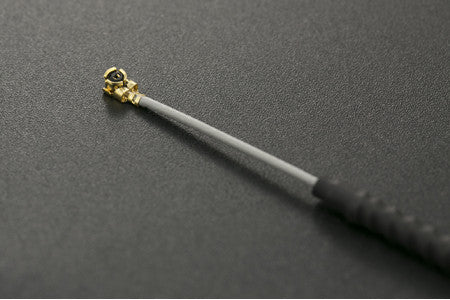

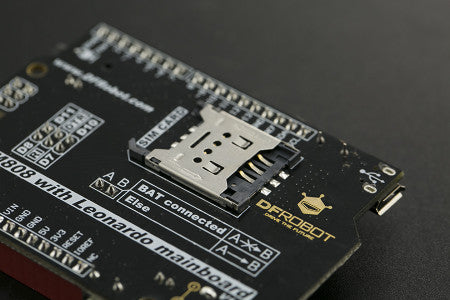

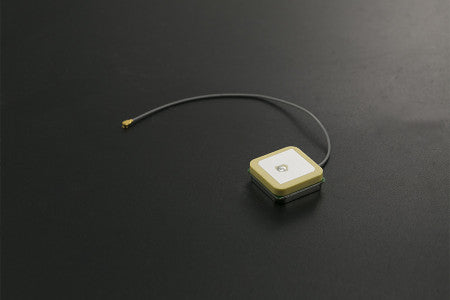

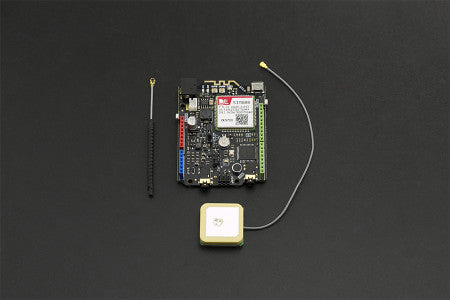

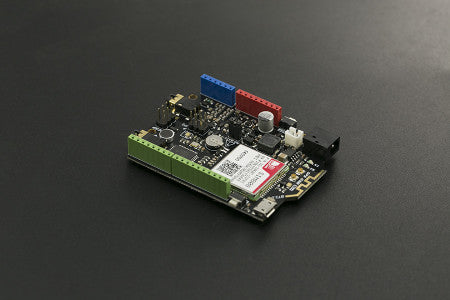

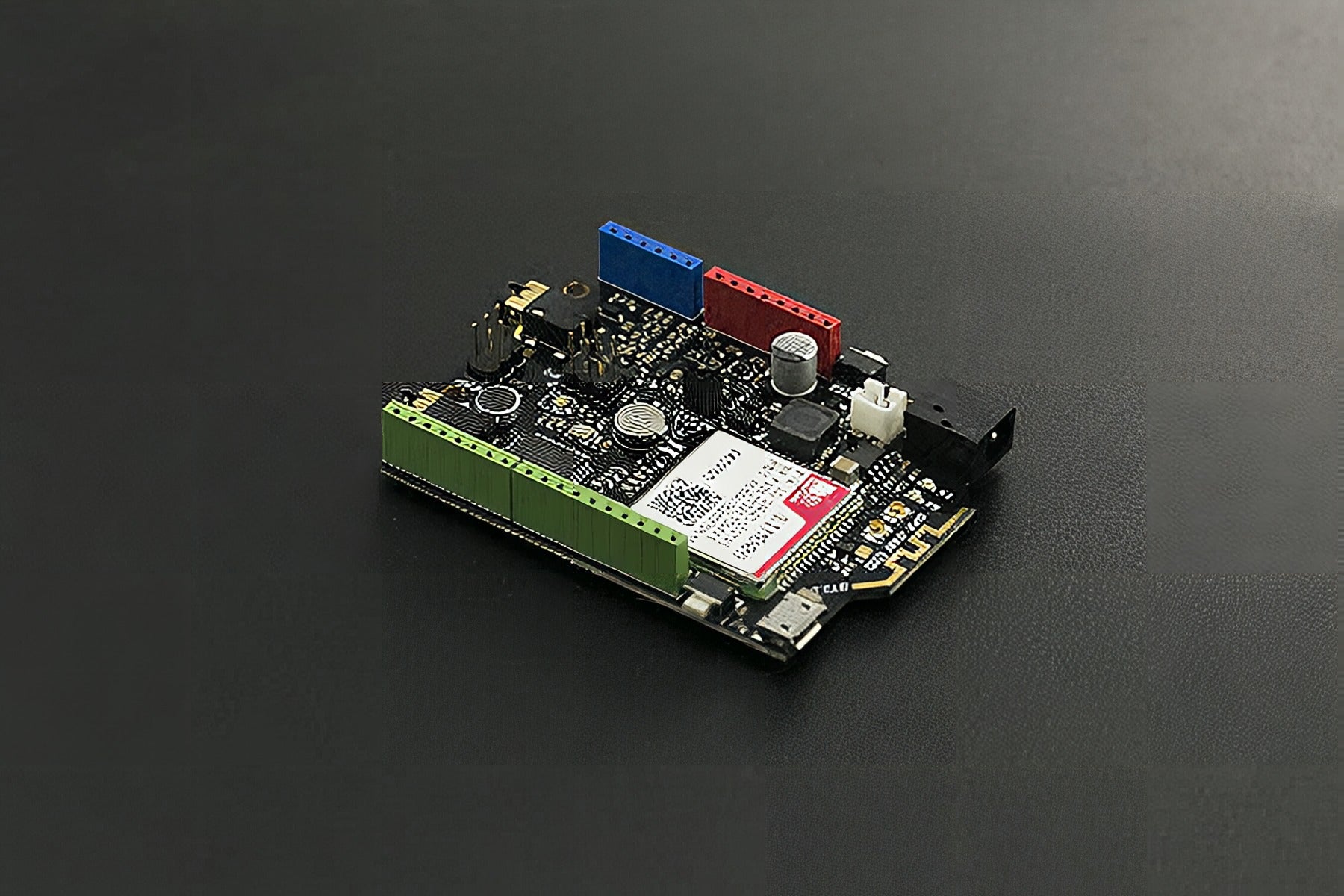

This is an Arduino Leonardo with SIM808 GSM/GPRS/GPS. The SIM808 with Leonardo mainboard is the latest Arduino board developed by DFRobot for multi-purpose applications. The onboard SIM808 module includes an integrated quad-band GSM/GPRS and GPS satellite navigation module, and a 4 layer PCB integrates the microcontroller, microphone, headphone jack and GPRS/GPS, giving this board the tiny footprint of a regular credit card! Meanwhile, the board includes a sleep mode feature for extra-low power consumption. And an on-board 3.7V Lipo battery power supply and battery-charging circuit has been integrated into the board, making it ideal for applications such as real-time car tracking, security patrolling and IoT projects.

Compared with the existing SIM808 modules on the market, this SIM808 uses the latest version with better stability.

APPLICATIONS

• GPRS network nodes

• Remote communications

• Satellite positioning

• Real-time car tracking systems

• Security

• Internet of things (IoT)


SPECIFICATION

• AVR Arduino MCU: ATmega32u4 (Bootloader: Leonardo)

• Operating voltage: 5V

• Input Voltage: 5V (USB)/7~23V(Vin)/3.5~4.3V (BAT)

• Low-power consumption: (100mA@7V-GSM mode)

• Digital I/O Pins: 20

• PWM Channels: 7

• Analog Input Pins: 12

• DC Current per I/O Pin: 40 mA

• DC Current for 3.3V Pin: 50 mA

• Flash Memory: 32 KB (of which 4 KB is used by the bootloader)

• SRAM: 2.5 KB

• EEPROM: 1 KB

• Clock Speed: 16 MHz

• Wireless Module: SIM808 GSM/GPRS/GPS module

• Quad-band 850/900/1800/1900MHz – 2G GSM network

• GPRS multi-slot class 12/10

• GPRS mobile station class B

• Compliant to GSM phase 2/2+

• Class 4 (2 W @ 850/900MHz)

• Class 1 (1 W @ 1800/1900MHz)

• Bluetooth: Compliant with 3.0 + EDR (Not open in this version)

• Time-To-First-Fix

• Cold starts: 30s (typ.)

• Hot starts: 1s (typ.)

• Warm starts: 28s (typ.)

• Accuracy: Horizontal position 2.5m CEP

• Update rate: 5Hz

• Control: AT command (GSM07.07, 07.05 and SIMCom enhanced AT commands)

• Dimension: 73*54mm / 2.87* inches

• Weight: 50g
