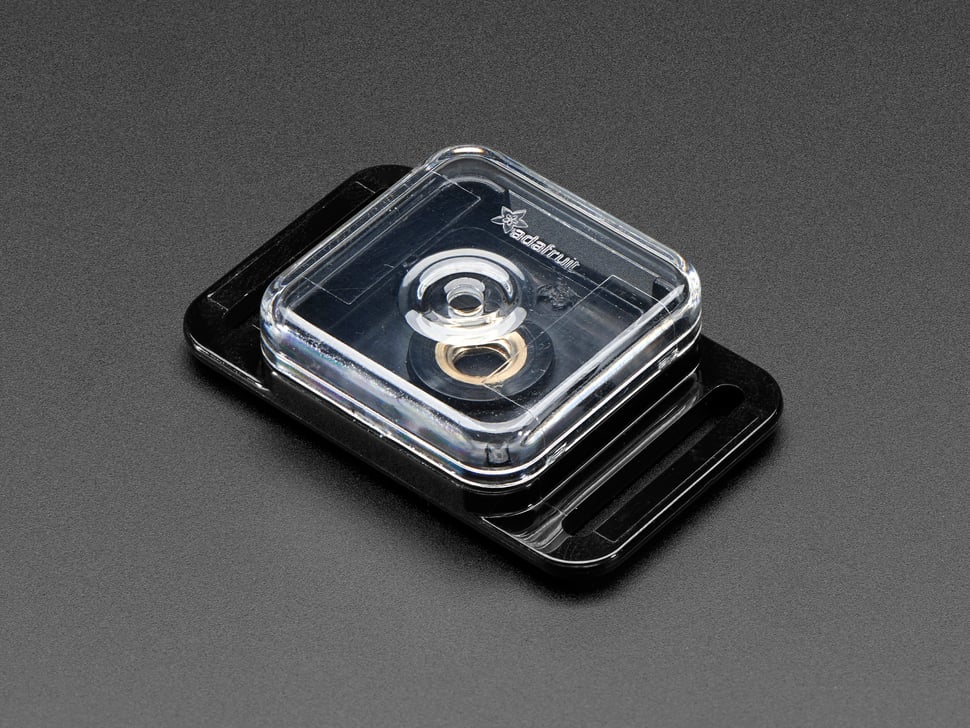

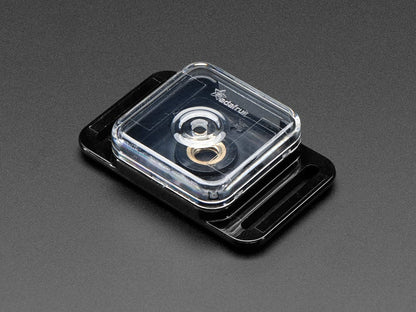

Protect and Mount Your Raspberry Pi Camera with Ease
The Adafruit Raspberry Pi Camera Board Case with 1/4" Tripod Mount is a simple, practical enclosure designed to keep your Pi Camera protected while making it much easier to mount in projects, test setups, monitoring systems, and camera builds.
This case uses a minimal two-piece design with a black base and clear top, giving your camera board a clean, professional look without adding much bulk. It is made from durable polycarbonate, so it is lightweight, tough, and ready for everyday maker use.
Important: This product includes the case only. The Raspberry Pi Camera Board, flex cable, and other accessories are not included.
Why you'll love it
- Made for Raspberry Pi Camera boards: Fits Pi Camera v1 and v2
- Built-in tripod mount: 1/4" tripod nut on the back for standard mounting hardware
- Compact enclosure: Two-piece snap-fit design keeps the camera secure
- Cable-friendly layout: Slim opening allows the flex cable to route out cleanly
- Flexible mounting options: Side slots let you use straps, zip ties, tape, or hook-and-loop fasteners
- Clean lens opening: Tiny hole on the top helps avoid image obstruction
What you can build
This camera case is great for Raspberry Pi photography projects, monitoring systems, tripod-mounted vision setups, machine vision experiments, robotics builds, streaming rigs, and time-lapse projects where the camera needs a bit more protection and a cleaner way to mount.
Starter bundles
Pair it with a Raspberry Pi Camera Board, a Raspberry Pi, and a Pi camera flex cable for a simple camera setup. A small tripod is also a great add-on if you want a ready-to-position camera station.
Recommended add-ons
Useful extras include longer camera flex cables, tripod mounts, Raspberry Pi cases, and mounting accessories for robotics or fixed-position installs.
Technical specifications
| Product | Adafruit Raspberry Pi Camera Board Case with 1/4" Tripod Mount |
|---|---|
| Compatibility | Raspberry Pi Camera Board v1 and v2 |
| Material | Polycarbonate |
| Construction | Two-piece snap-fit enclosure |

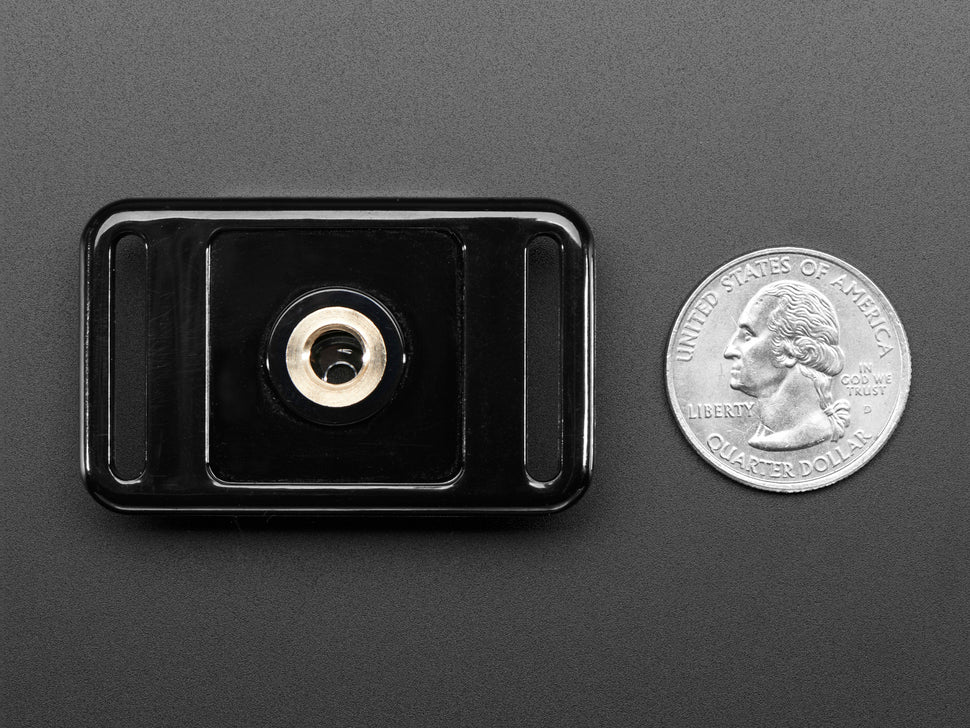

| Mount Type | 1/4" tripod mount nut on back |
| Side Slot Width | 3mm |
| Distance Between Side Slots | 40mm |
| Dimensions | 50.0mm × 30.0mm × 12.4mm |
| Weight | 7.5g |
Pinout & fit notes

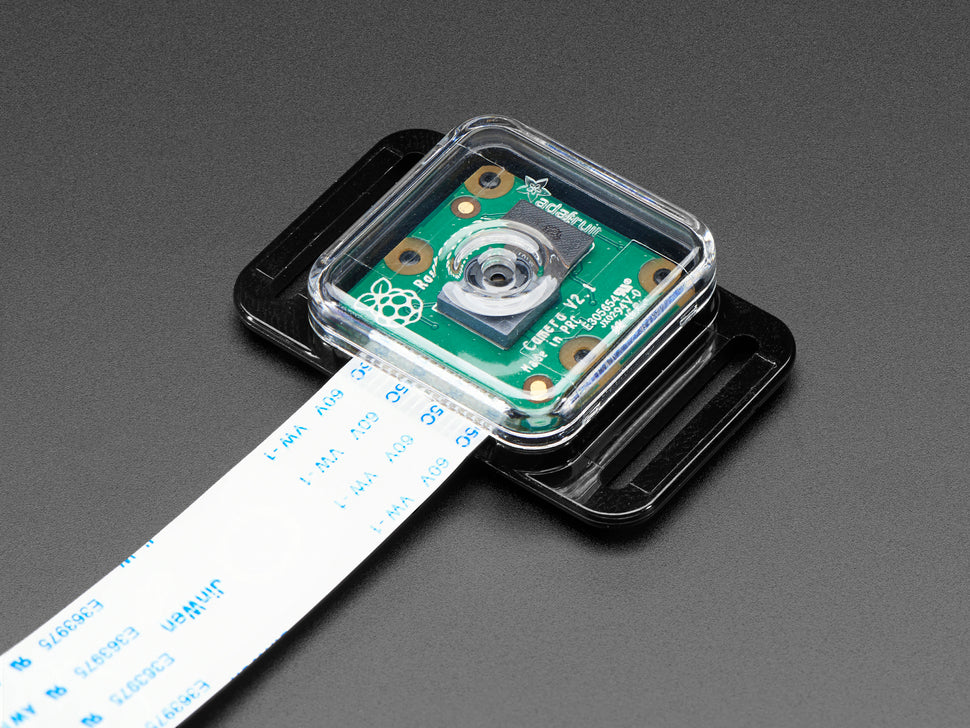

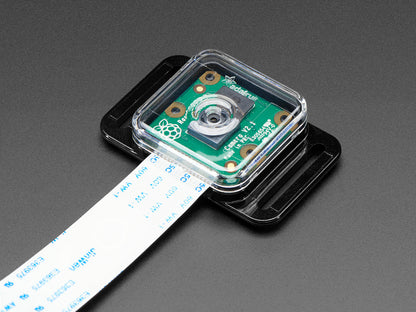

The camera board sits into the base and latches onto four small pegs, while the top cover snaps over it. A slim side opening allows the flex cable to exit neatly, and the back-mounted tripod nut makes the enclosure easy to attach to standard camera hardware.
Please note that some Pi Camera v2 modules may sit a little tight in the case because the v2 module is slightly thicker. If the camera presses against the case and causes blurry images, the usual fix is to remove the sticky rubber spacer between the camera module and PCB.
What’s in the box
2 × case pieces
Not included: Raspberry Pi Camera Board, cables, and other accessories
Frequently Asked Questions
Does this include the Raspberry Pi Camera Board?
No. This product includes the enclosure only.
Will it fit Pi Camera v2?
Yes, it is made for Pi Camera v1 and v2, though some v2 modules may need the rubber spacer removed if focus is affected.
Can I mount this on a tripod?
Yes. It has a built-in 1/4" tripod mount nut on the back.
Can I strap it to another surface?
Yes. The side slots can be used with zip ties, straps, tape, or similar mounting methods.
Is it bulky?
No. It has a compact, minimal enclosure design made specifically for the Pi Camera board.
