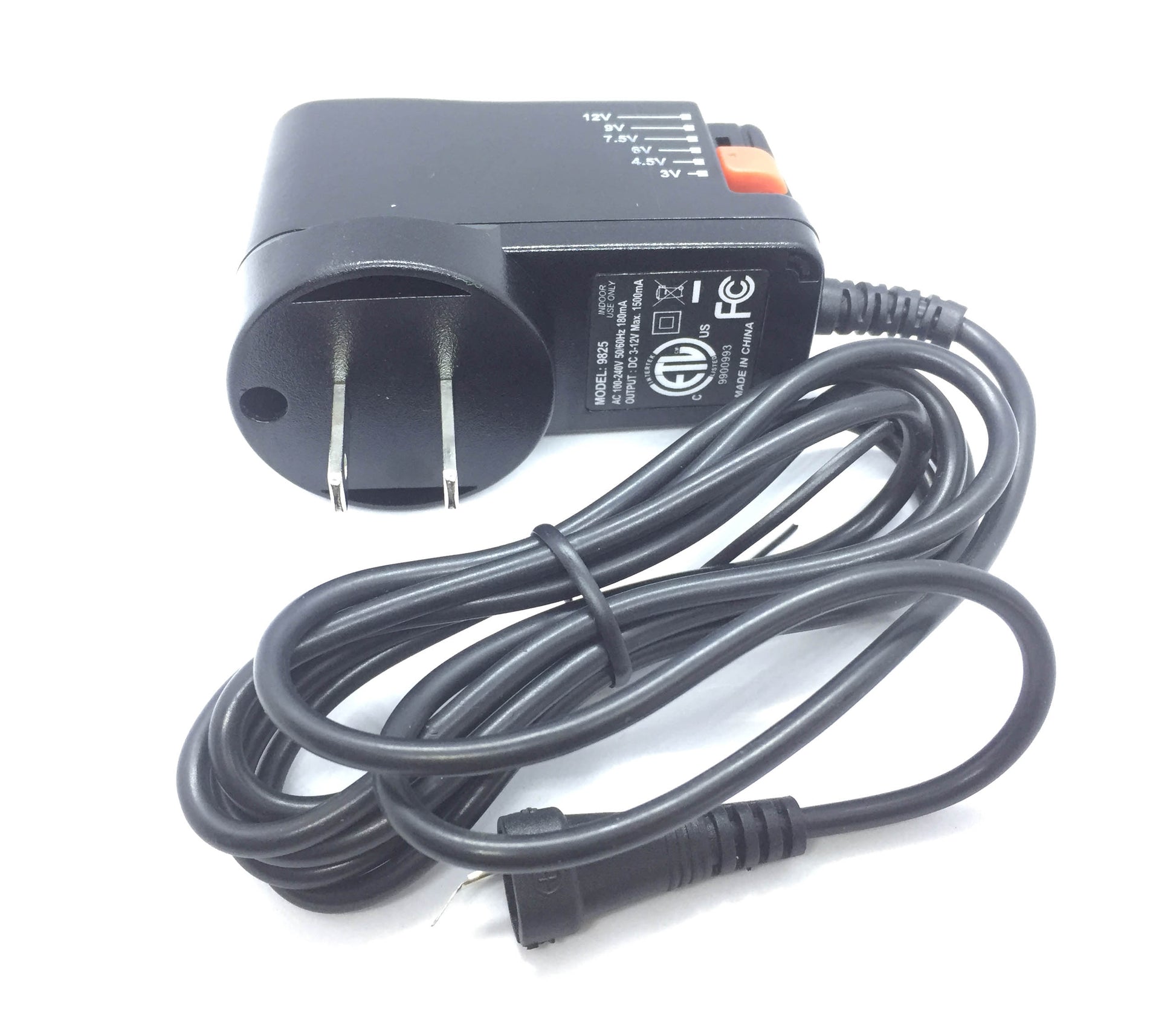

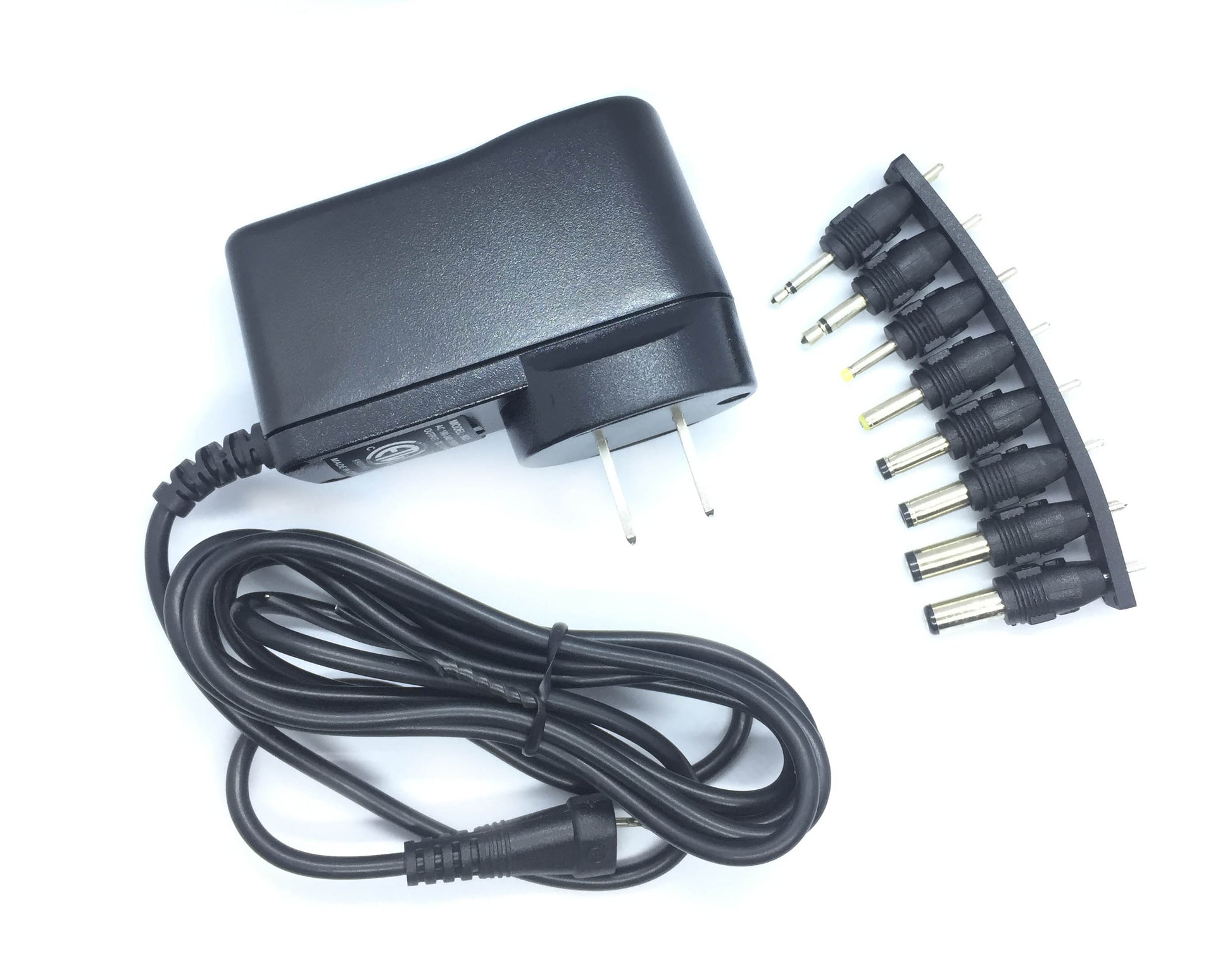

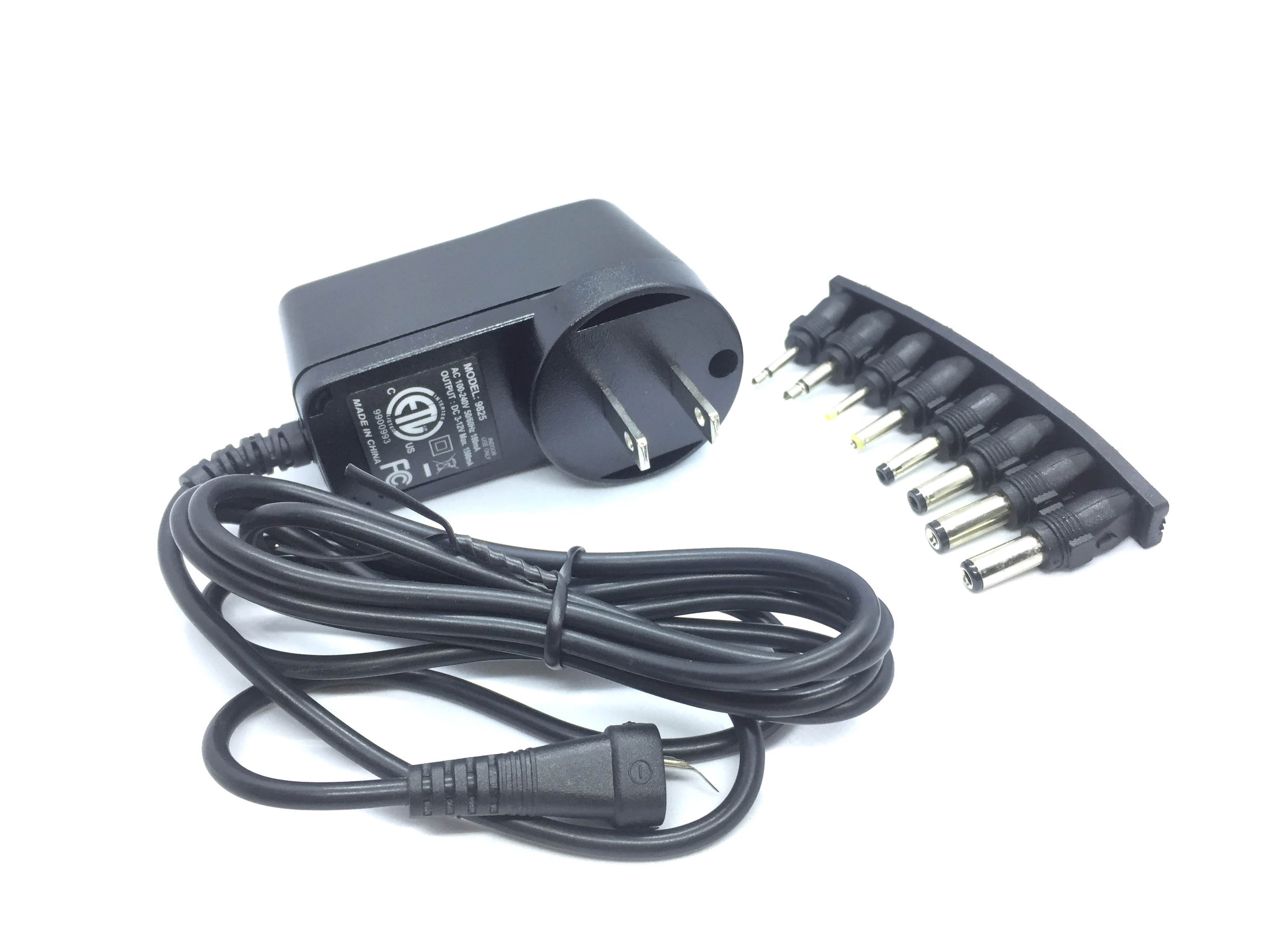

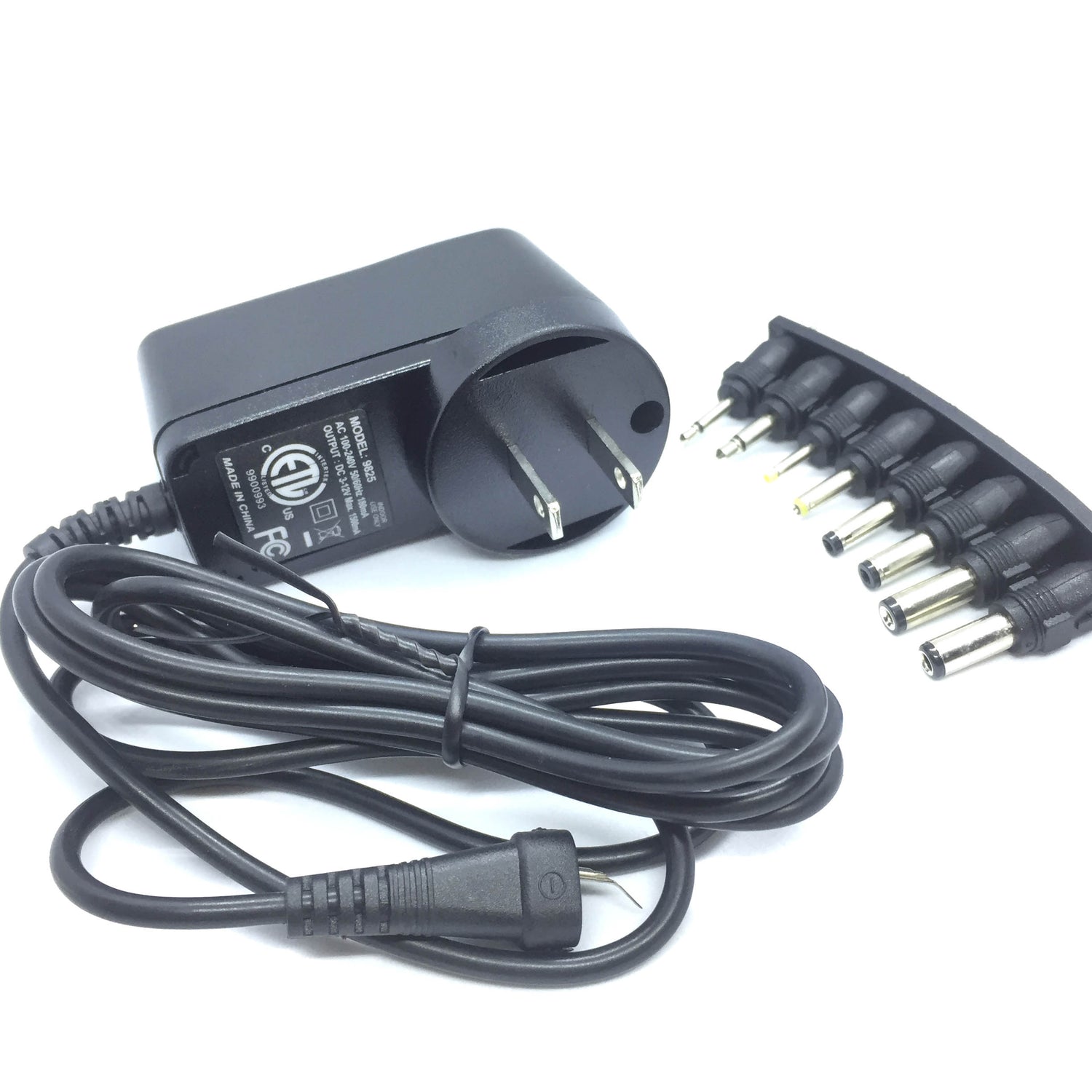

This is like a benchtop that you can bring anywhere. How great is that! This model is 10 Watts and has 6 selectable outputs ranging from 3V to 12VDC and up to 1.5A output. It can handle 110VAC to 240VAC.
QUICK SPECS:
- Multi changeable plug DC-cord.
- Universal AC input 100V to 240V, 50Hz/60Hz
- Universal AC input plug available (BSI, USA, Europe, Aust)
- 6 selectable outputs: 3V-12V MAX. 1500mA.

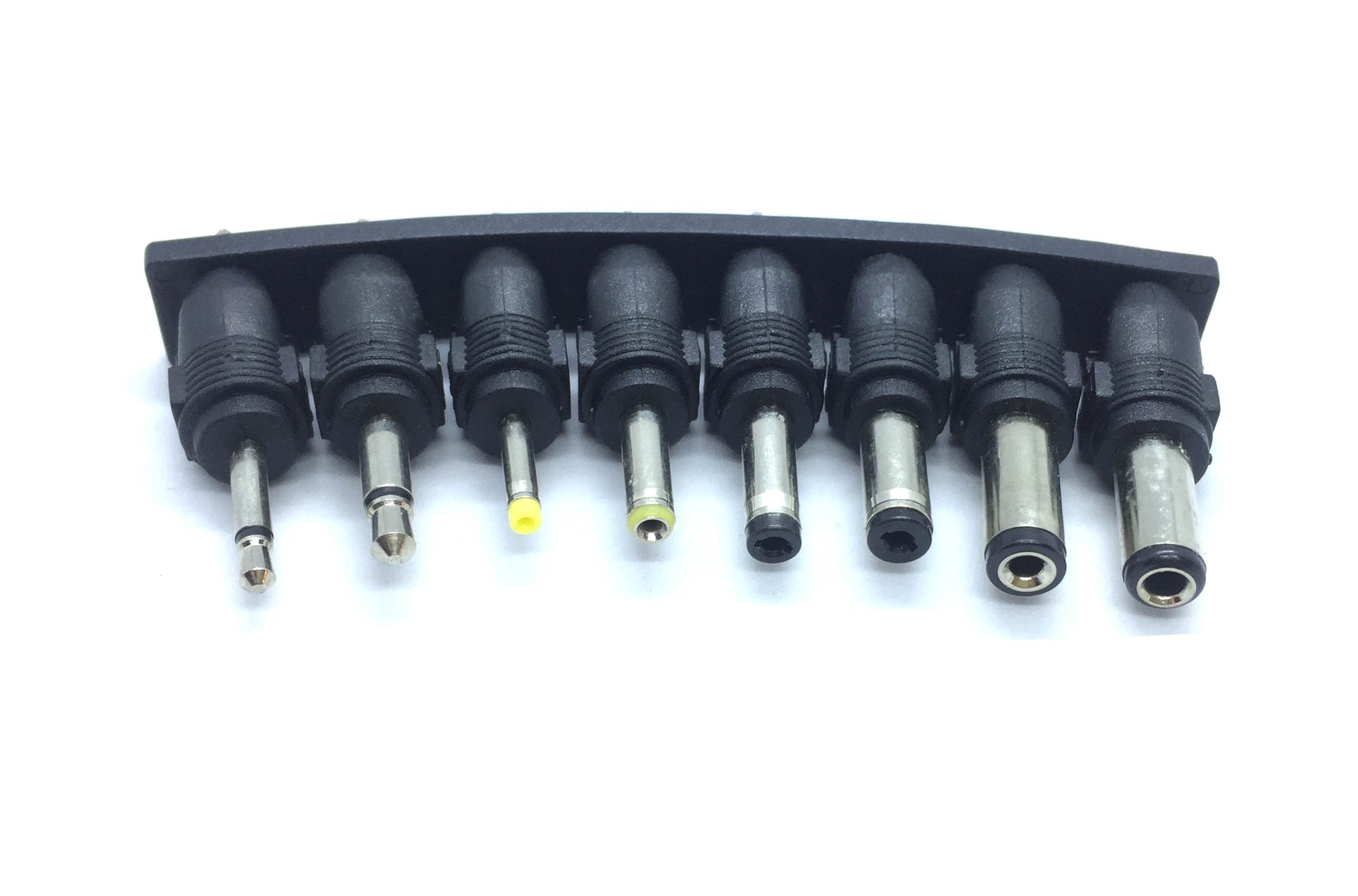

- Selectable plugs: 2.5mm mono, 3.5mm mono, 3.0/1.0mm, 3.5/1.35mm, 4.0/1.7mm, 5.5/2.1mm, 5.5/2.5mm, 5.5/1.5mm
- Over load, over current, over heat protection.
- International approval CE EN60950, UL1950, CSA22.2 No.950.
- EMC approval EN55022.
- Extra low consumption during standby (about 8% of linear adapter).
- Weight: 86g approximately.
- Small size: 67x29x74mm.
- Cable length: 1.54m / 60 3/4"
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
