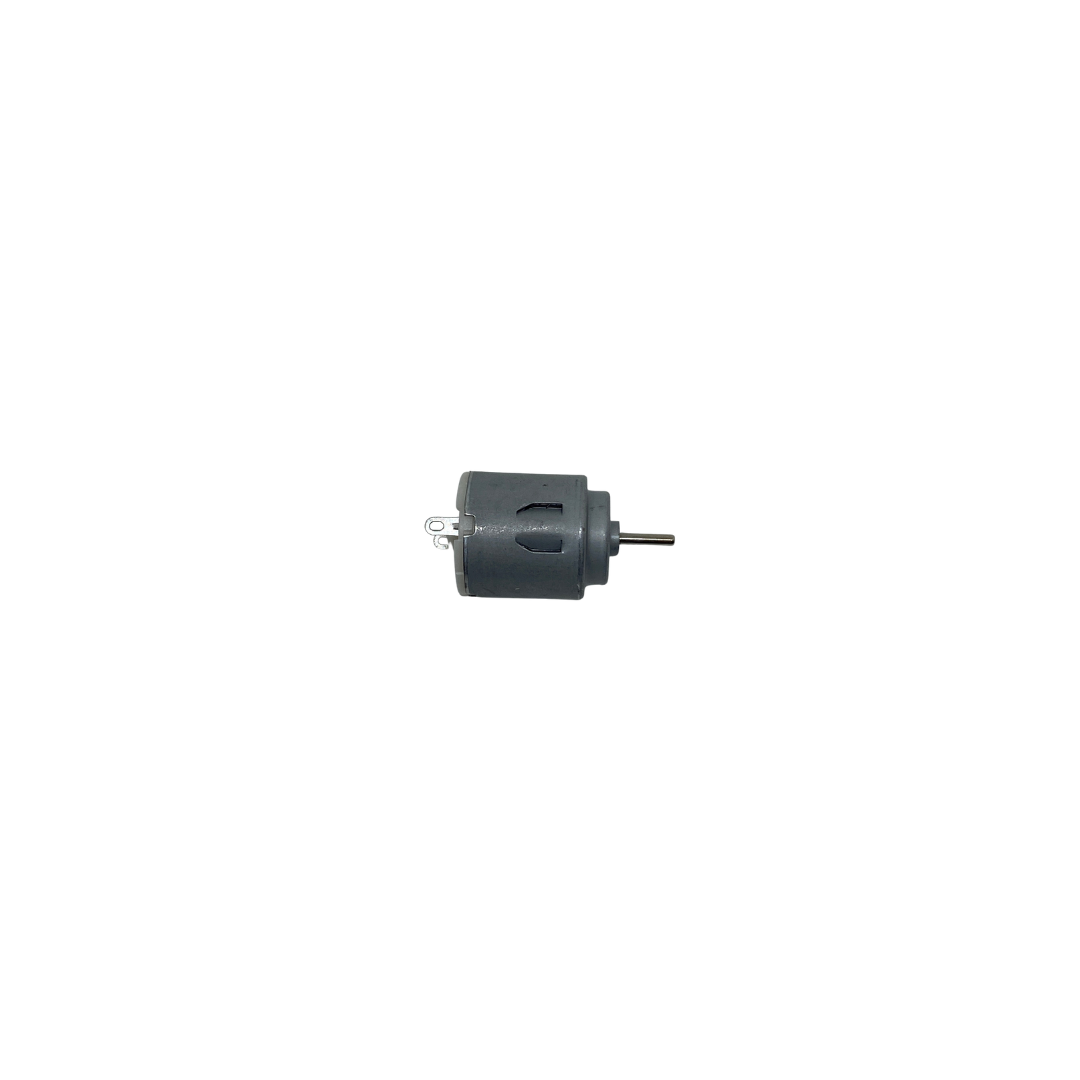

The 140 3V/15000RPM High Speed Power DC Motor is a compact brushed DC motor designed for applications that require high rotational speed in a small form factor. It operates with a DC voltage range of 3 V to 6 V and can reach speeds of approximately 9,200 to 15,000 RPM, depending on the supplied voltage and operating conditions.

With its compact 21 mm diameter body and 25 mm motor length, the motor is suitable for small electronic and mechanical projects where space is limited. It features a 9 mm shaft with a 2 mm diameter, allowing it to be connected to small gears, wheels, fans, propellers, and other mechanical components.

This motor is ideal for DIY electronics, robotics, small fans, model vehicles, toys, and other projects that require a compact high-speed motor.

Key Features:

• High-speed DC motor
• Operating voltage: 3–6 V DC
• Speed range: approximately 9,200–15,000 RPM
• Motor diameter: 21 mm
• Motor length: 25 mm, excluding shaft
• Shaft length: 9 mm
• Shaft diameter: 2 mm
• Compact and lightweight design
• Suitable for DIY and prototype projects

Common Applications:
The 140 DC Motor can be used for small robotics projects, DIY fans, model cars, toy mechanisms, mini propellers, small mechanical systems, and other electronic projects requiring high-speed rotation.
