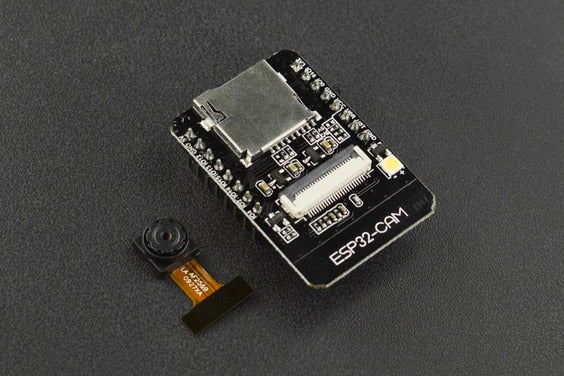

ESP32-CAM

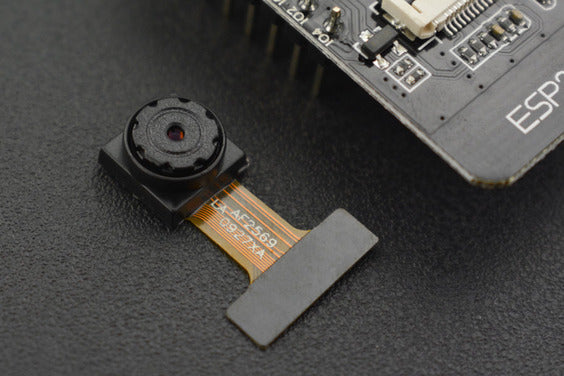

The ESP32-CAM is a powerful microcontroller module with a built-in camera, perfect for a variety of projects like IoT, security systems, and AI applications. It features the reliable ESP32 chip, which ensures high performance and low power consumption. The included OV2640 camera captures clear images and videos with resolutions up to 1600x1200 pixels, making it ideal for real-time monitoring and image processing.

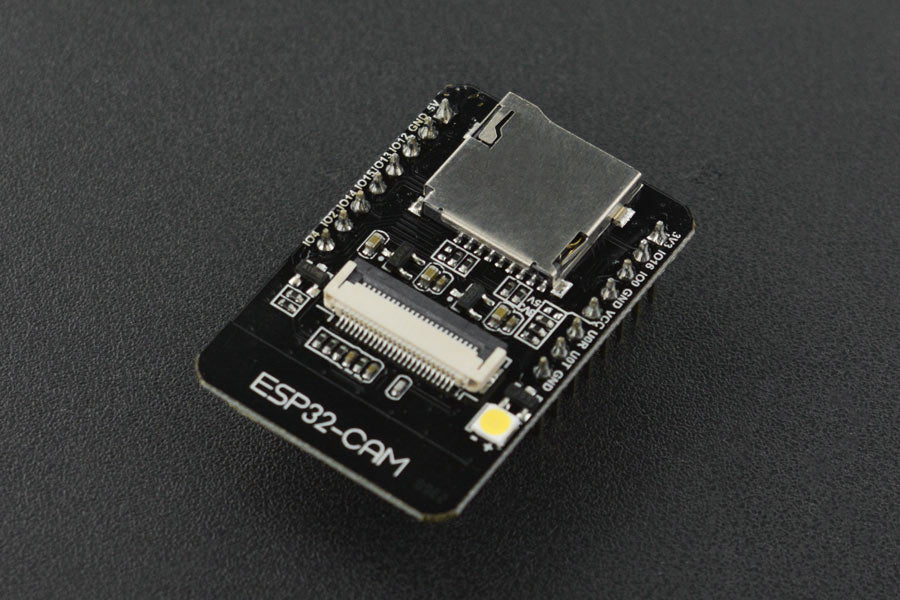

One of the standout features of the ESP32-CAM is its excellent connectivity. It supports Wi-Fi and Bluetooth, making it easy to connect to other devices and networks. This is great for remote monitoring and control, such as in home automation systems and wireless surveillance cameras. The module also has a microSD card slot for easy storage of images and videos, providing flexibility for various uses.

The ESP32-CAM is easy to use and affordable, compatible with popular development environments like Arduino IDE and ESP-IDF. Its compact size and multiple I/O pins make it suitable for a wide range of projects, from simple prototypes to complex systems. By choosing the ESP32-CAM, you get a reliable, versatile, and cost-effective solution that can bring your innovative ideas to life, making it a great choice for both hobbyists and professionals.

Notes:
  1. Please be sure that the power supply for the module should be at least 5V 2A, otherwise maybe there would be water ripple appearing on the image.
  2. ESP32 GPIO32 pin is used to control the power of the camera, so when the camera is in working, pull GPIO32 pin low.
  3. Since IO pin is connected to camera XCLK, it should be left floating in using, and do not connect it to high/low level.
  4. The product has been equipped with default firmware before leaving the factory, and we do not provide additional one's for you to download. So, please be cautious when you choose to burn other firmware's.

Specifications:

  • Up to 160MHz clock speed,
  • Summary computing power up to 600 DMIPS
  • Support image WiFI upload
  • Support TF card
  • Supports multiple sleep modes.
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP operation mode
  • Support Smart Config/AirKiss technology
  • Support for serial port local and remote firmware upgrades (FOTA)

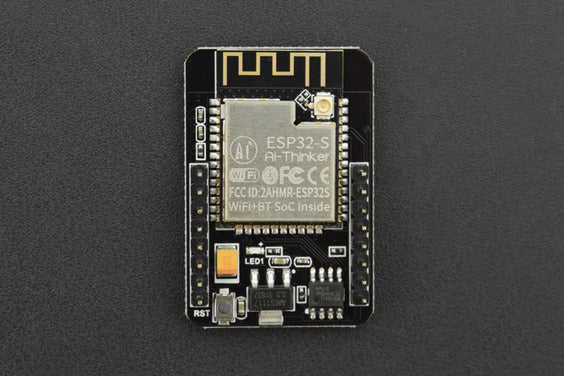

  • ESP32-S module with dual-core processing
  • WiFi (802.11 b/g/n) and Bluetooth connectivity
  • Adjustable clock frequency (80MHz to 240MHz)
  • Internal SRAM up to 520KB and flash memory (4MB to 16MB)
  • OV2640 or OV7670 camera module
  • Interfaces: UART, SPI, I2C, PWM, ADC, DAC
  • Arduino IDE compatibility
  • Power options: micro USB or 5V to 12V external source
