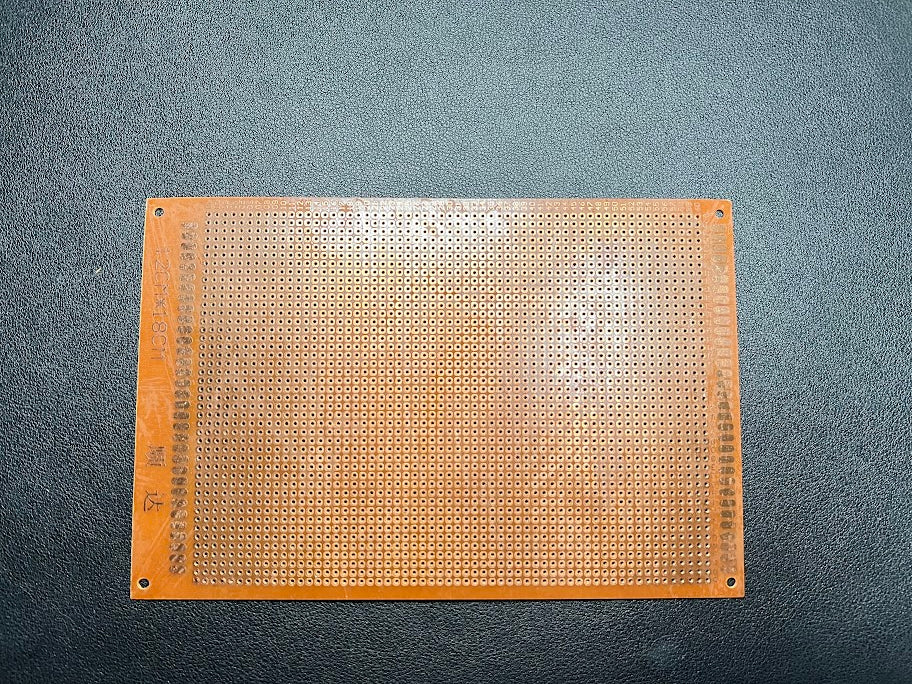

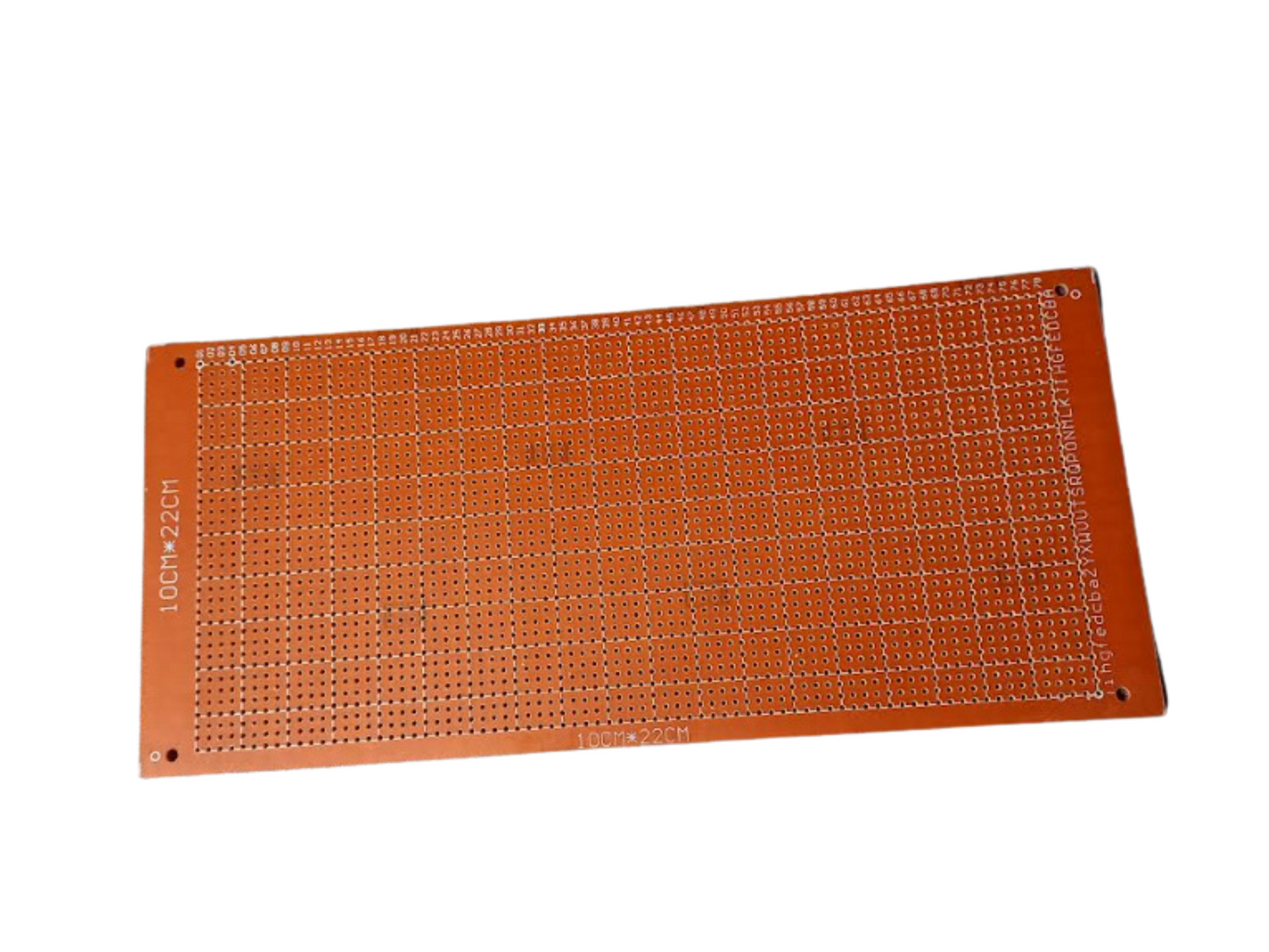

PCB Perfboard Plates Bakelite Universal 3PCS

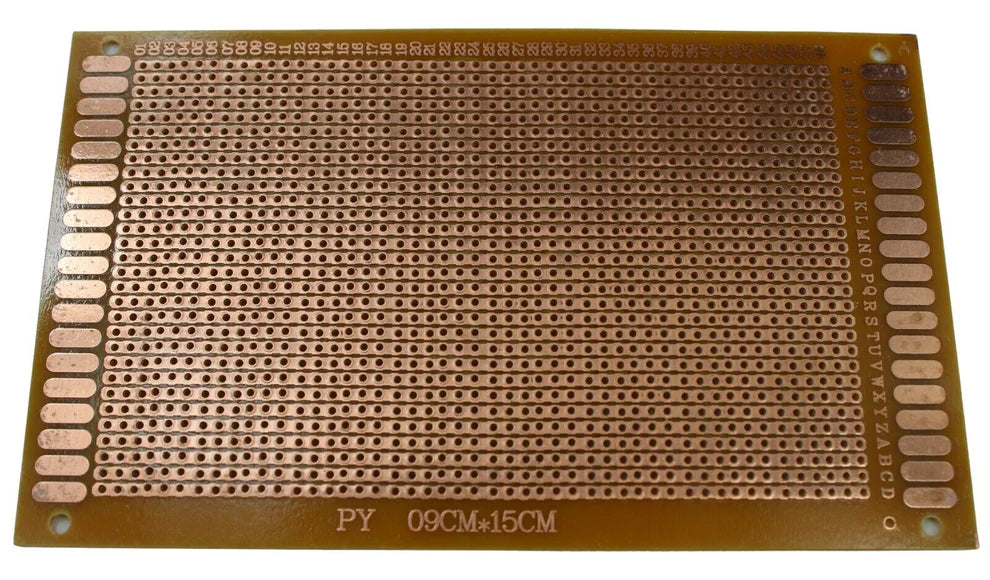

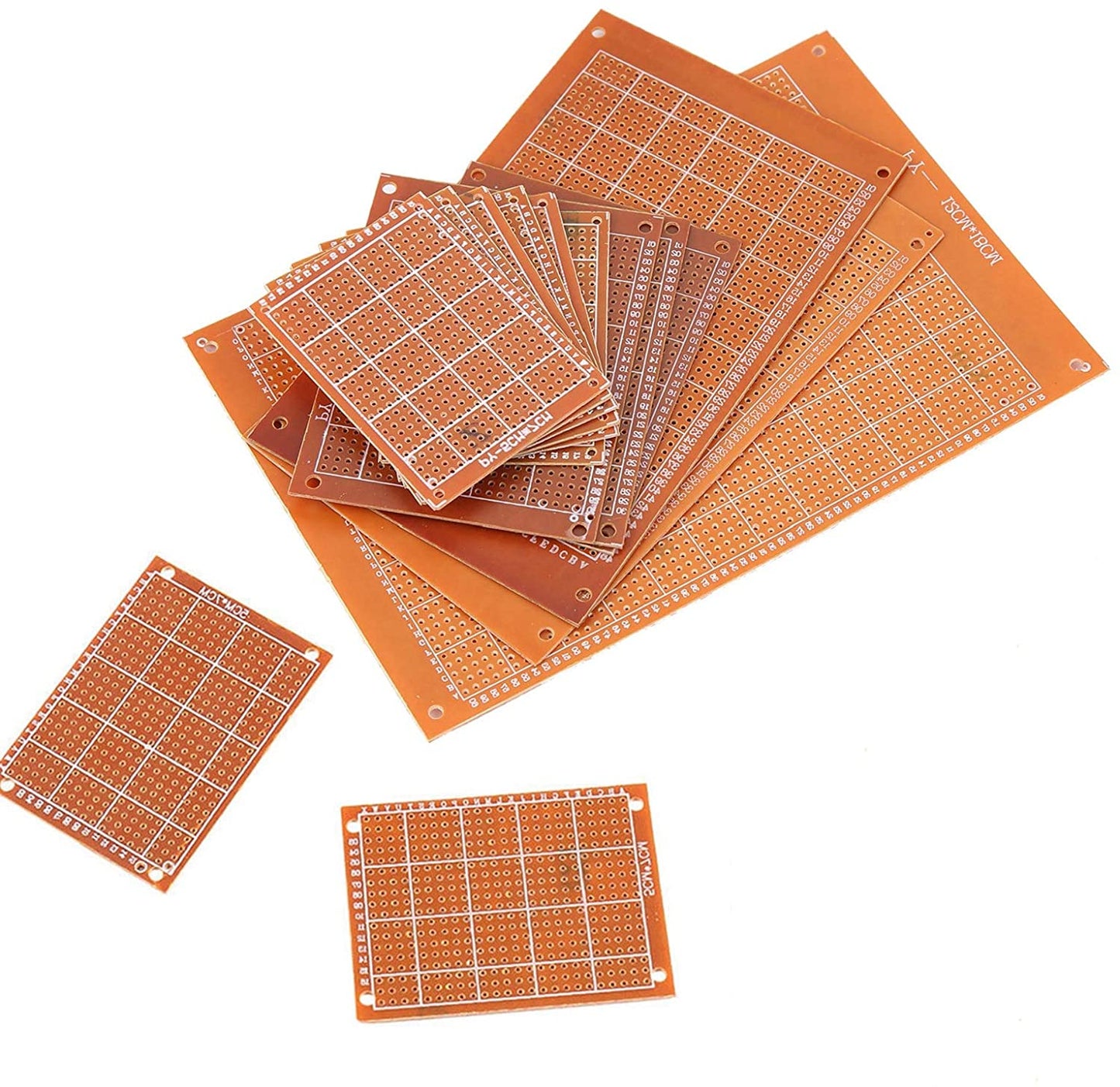

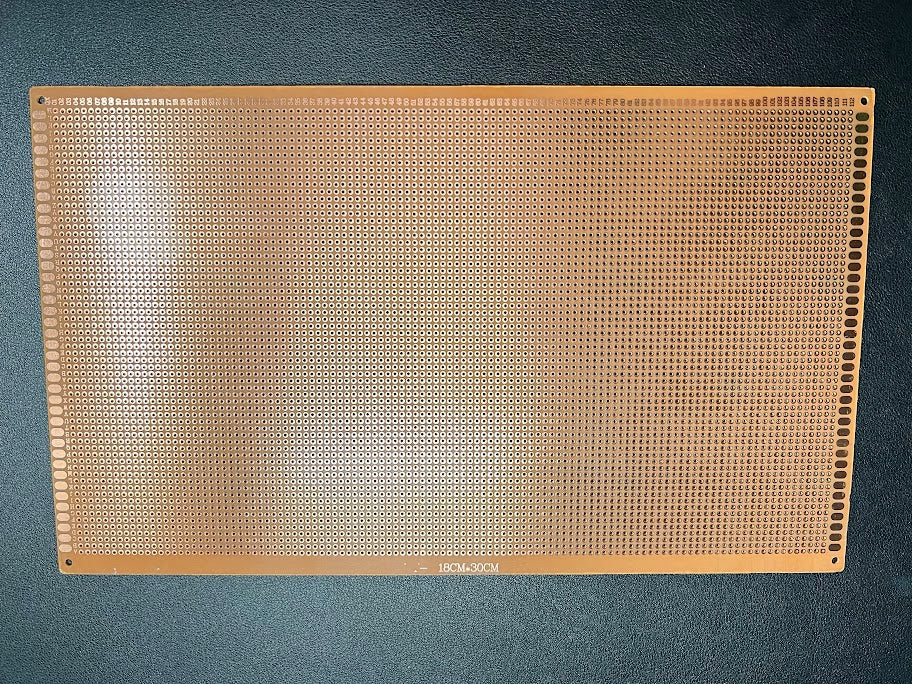

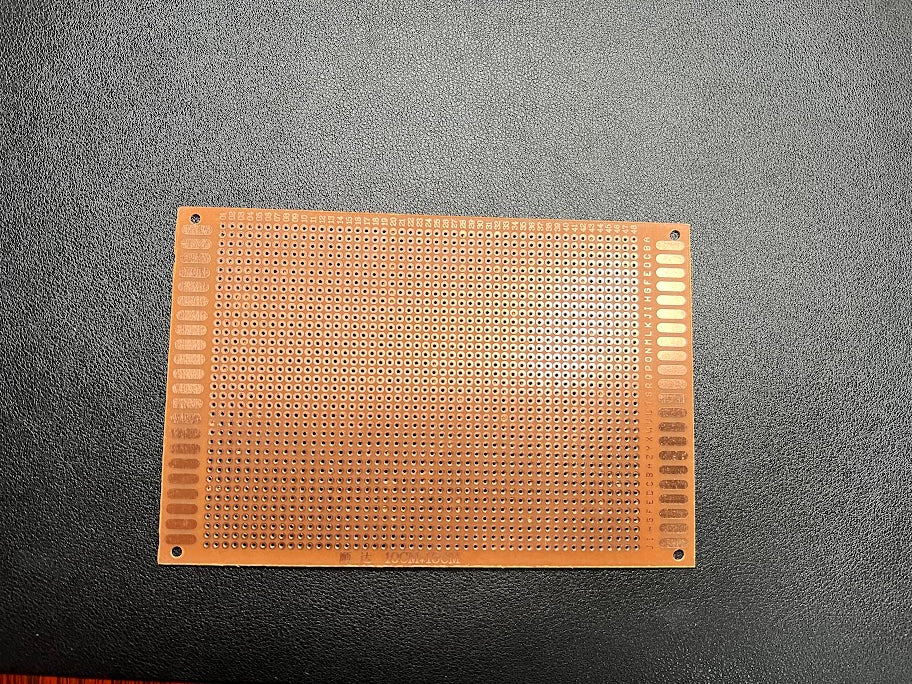

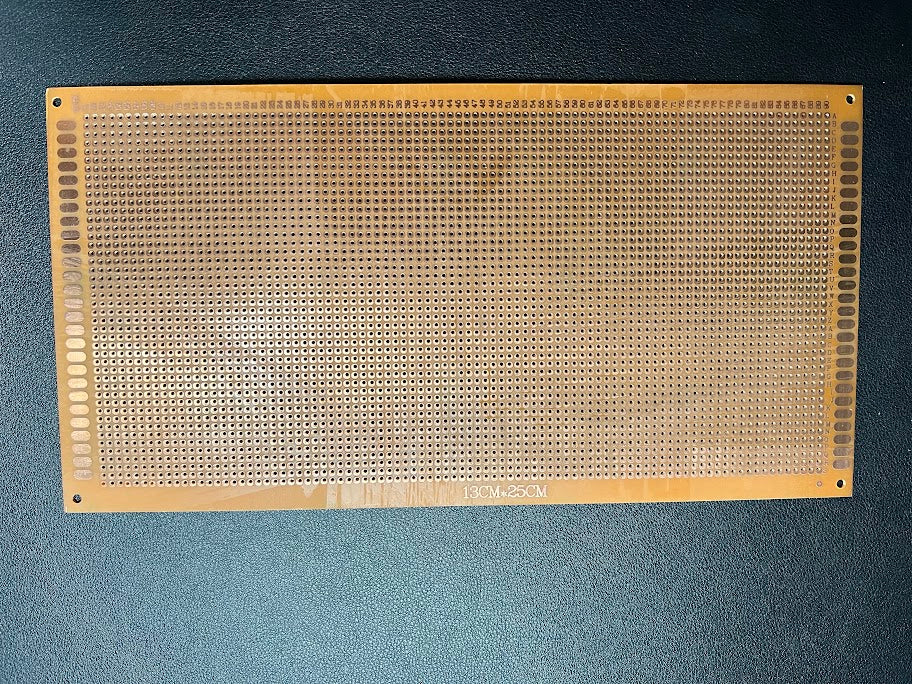

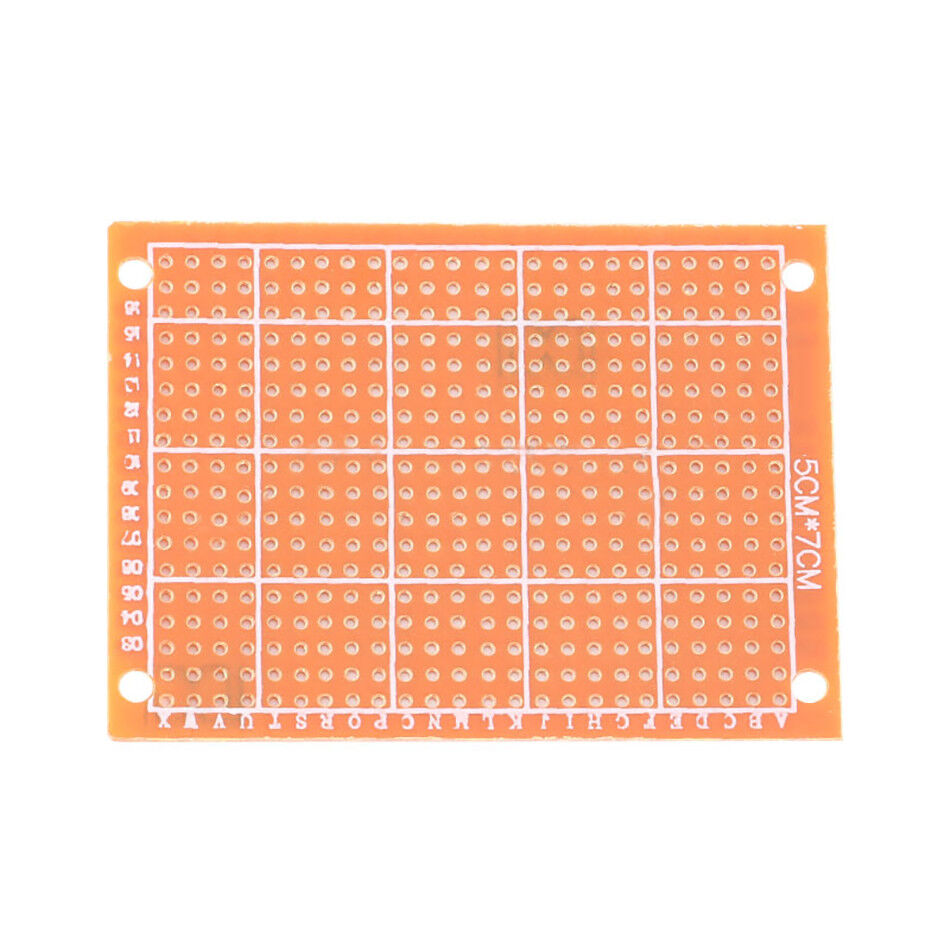

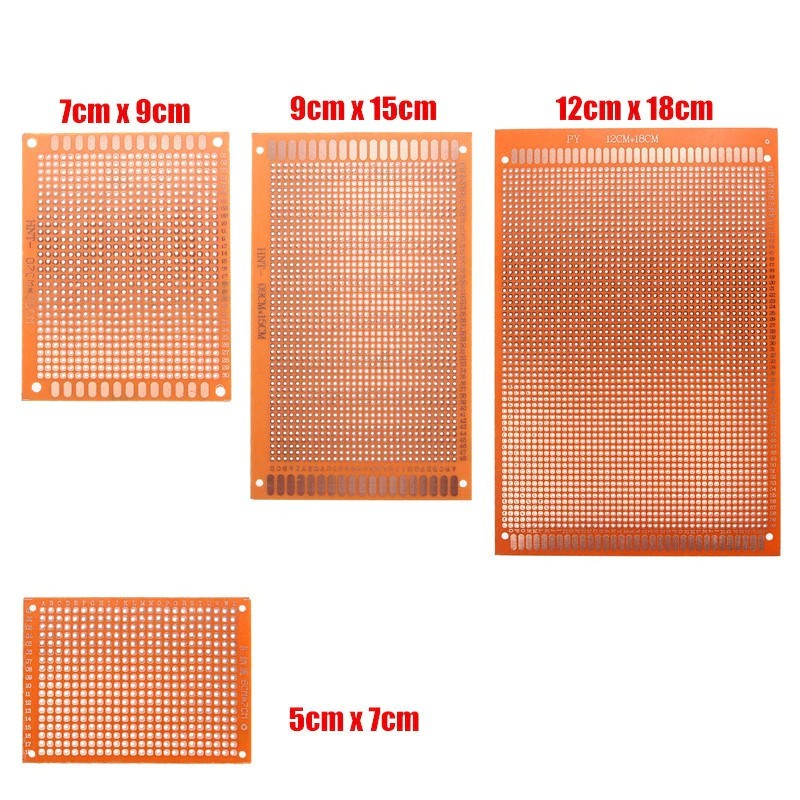

PCB Perfboard Plates Bakelite Universal 3PCS –Perfboard is an efficient material to be used for prototyping purposes. It is implemented for prototyping electronic circuits that are also known as DOT PCB. Further, it is a rigid sheet with holes that are pre-drilled on the thin material. All holes manage a standard interval throughout the grid. Normally, it presents a square grid with a spacing of 0.1 inches (2.54mm). On the sheet, you can witness holes ringed by square or round copper pads. However, bare boards also exist.

There are two standard prototyping platforms: Breadboards and Perfboards. Breadboards let you connect electronic components by inserting their leads or terminals into the holes and then making connections via a pre-built copper base inside the breadboard. Perfboards are the opposite side of the coin. They have no default connectivity, so you have total freedom on how you'd like to connect the wires. Moreover, perfboards can be cut as they are thin as biscuits. You can use them in any size you want for any amount of electronic components you like.

Furthermore, cheaper Perfboards may contain pads on only a single side of the board. On the contrary, Perfboards with better quality are poised to integrate pads on both sides. The concerned technician will have to create all connections using either wire wrap or miniature point-to-point wiring tactics, given each pad is electronically isolated. Similarly, discrete elements are soldered along with the prototyping board i.e. capacitors, resistors, and integrated circuits. Hence, the substrate unit is typically generated of paper laminated with phenolic resin as well as a fiberglass-reinforced epoxy laminate.

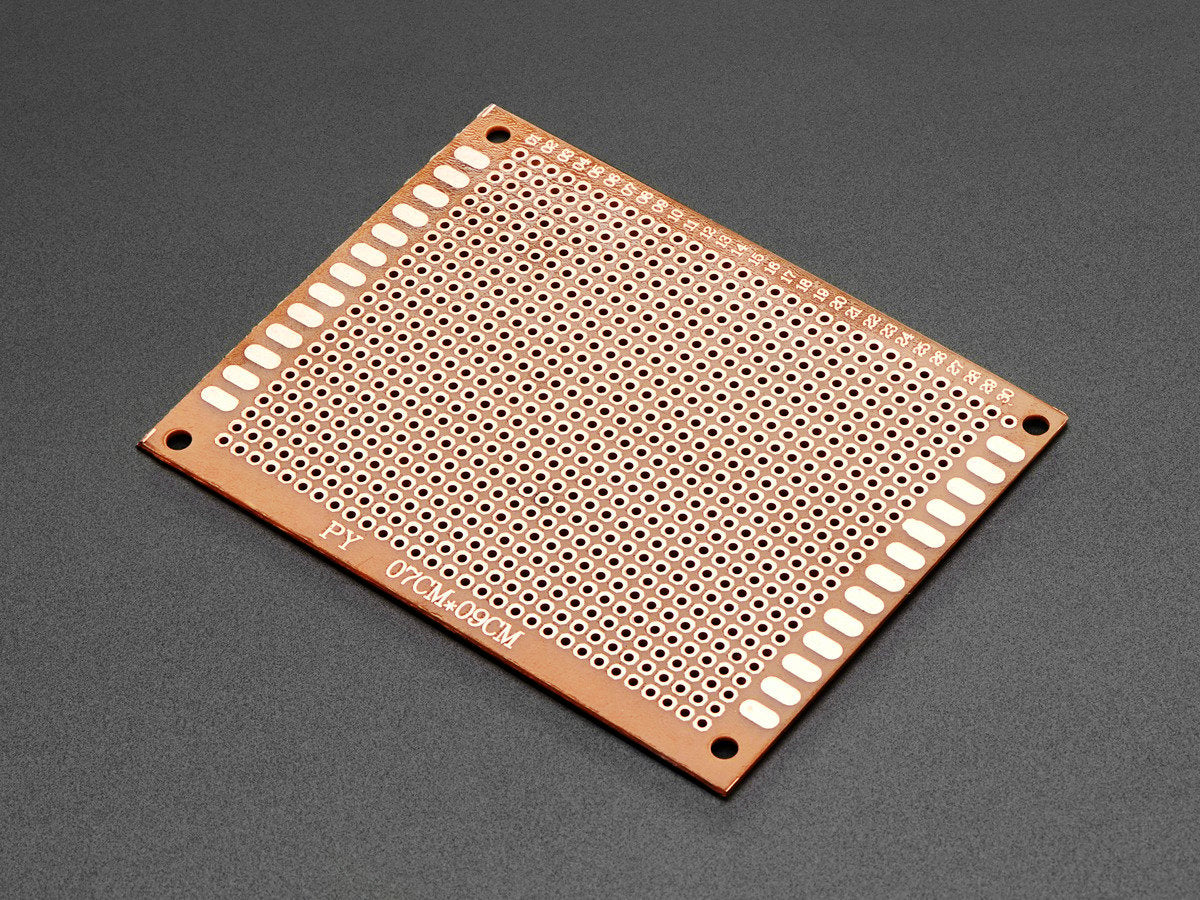

Perfboard Plates Bakelite Universal PCB (3PCS)

It is mandatory and beneficial to plan the locations of connections and components in detail on paper or software before building a circuit on Perfboard. The systematic pattern of 0.1 inches grid accommodated integrated circuits in DIP packages as well as several other sorts of through-hole components. Well, it isn’t designed for prototyping surface mount devices. On the other hand, small-scale prototypes build ad hoc using an oversized Perfboard.

There are some differences between Perfboard and stripboard. As far as the strip board is concerned, it is made with rows of copper conductors that host default connections. These components are further broken into isolated elements as needed by scrapping through the copper. It appears to look similar to the pattern of default links on a Solderless breadboard. The absence of default connectivity on the given unit provides the designer with more freedom in positioning components and lends itself more readily to software-aided design than stripboard or breadboard.

The Perfboard layouts can also be created using software for PCD layout. In this affair, the designer positions the elements that further impact intersections of a 0.1 inches grid. It allows you to use 2 copper layers while routing the connections. There would be no issues with multiple overlaps for insulated wires. The components are soldered in the given locations after the layout is finalized. It demands attention to the orientation of polarized parts such as diodes, electrolytic capacitors, and integrated circuits.

Specifications:


  • Holes are 30x24
  • Mounting holes distances: 82mm x 62mm / 3.2" x 2.4"
  • Dimensions: 70.1mm x 90.8mm x 1.2mm / 2.8" x 3.6" x 0.05"
  • Weight: 8.5g
Library: None


Inclusions: 3 x Perfboard Plates Bakelite Universal 7x9cm 3PCS

Documents: None
