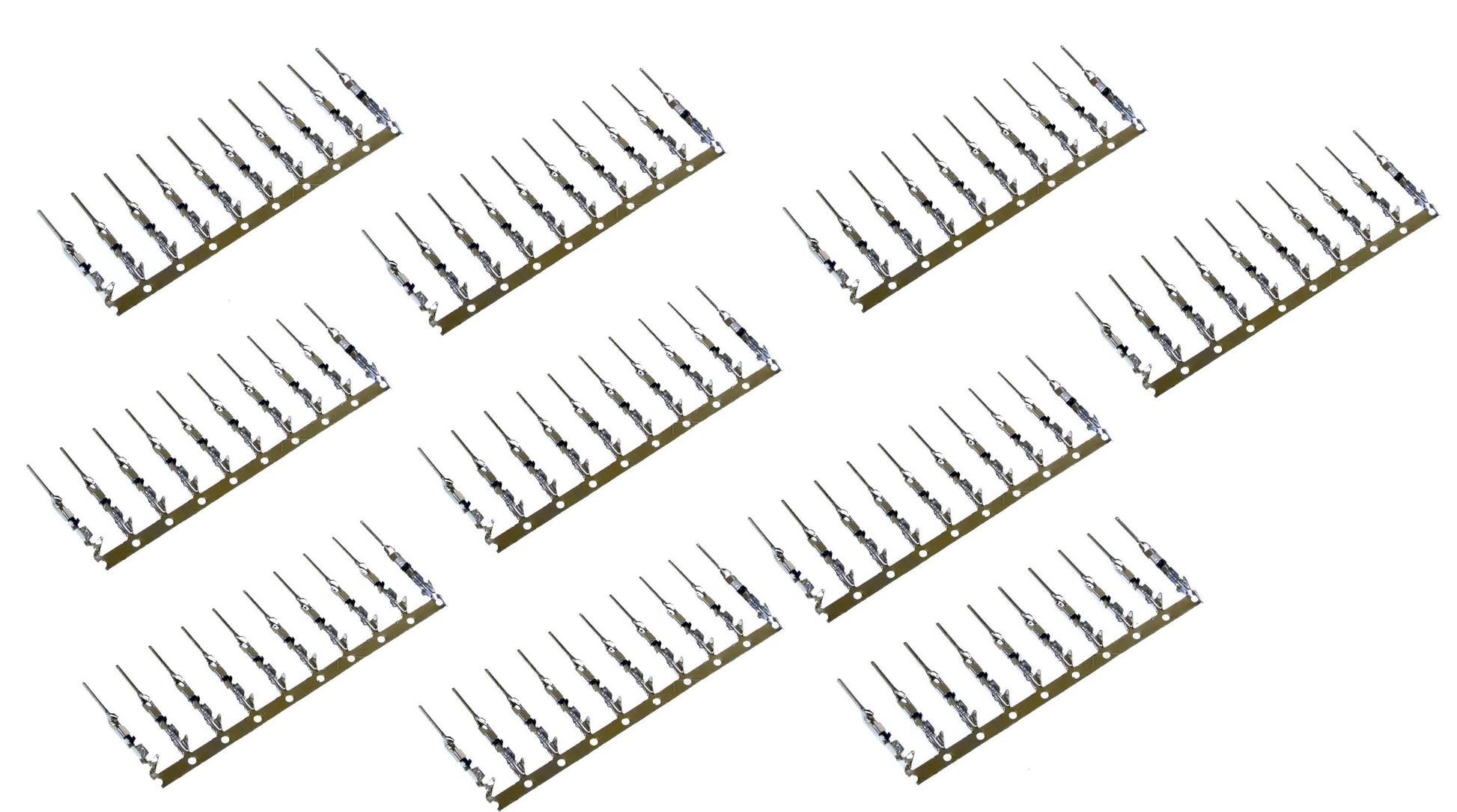

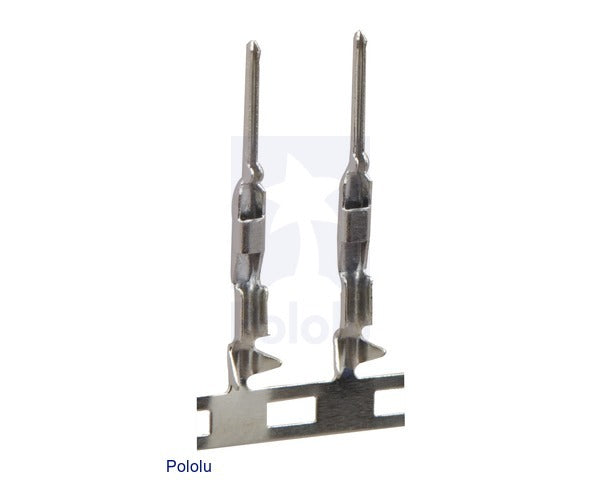

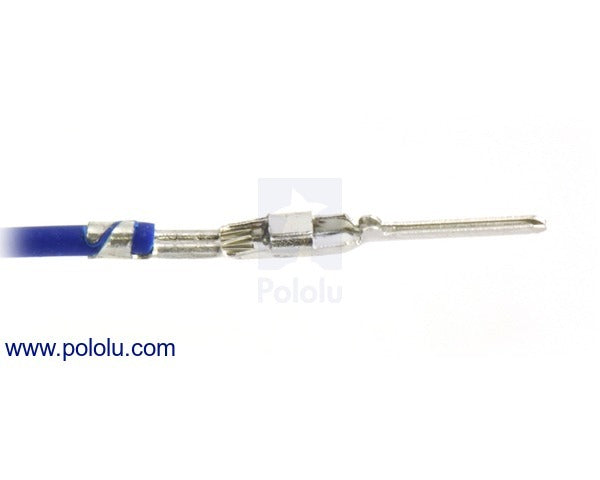

Create your own custom jumper wires with these male crimp pins—perfect for DIY electronics, prototyping, and Arduino projects. These pins are designed to be crimped onto wires and then inserted into compatible crimp connector housings, allowing you to build cables that easily connect to standard 0.1" (2.54 mm) male and female headers or solderless breadboards.
They work with 22 to 28 AWG wires, making them versatile for various wire sizes used in hobby electronics. Whether you're assembling sensor modules, wiring up microcontrollers, or organizing your circuits, these crimp pins offer a clean, secure, and professional solution for custom connections.
These crimp pins are sold in packs of 100 and are available in male and female versions
Specifications:
- Material: Tin-plated brass or phosphor bronze
- Wire Gauge Compatibility: 22–28 AWG
- Total length: 18.00 mm
- Pin width (terminal blade): 0.64 mm
- Crimp area width: 1.50 mm
- Spacing between pins (on carrier strip): 1.50 mm
- Crimp base thickness: 0.20 mm
- Distance from pin tip to crimp area start: 10.80 mm
- Crimp section length: 6.08 mm
- Locking tab thickness: 1.41 mm
- Shoulder width: 0.95 mm
- Quantity: 100 pcs per pack
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
