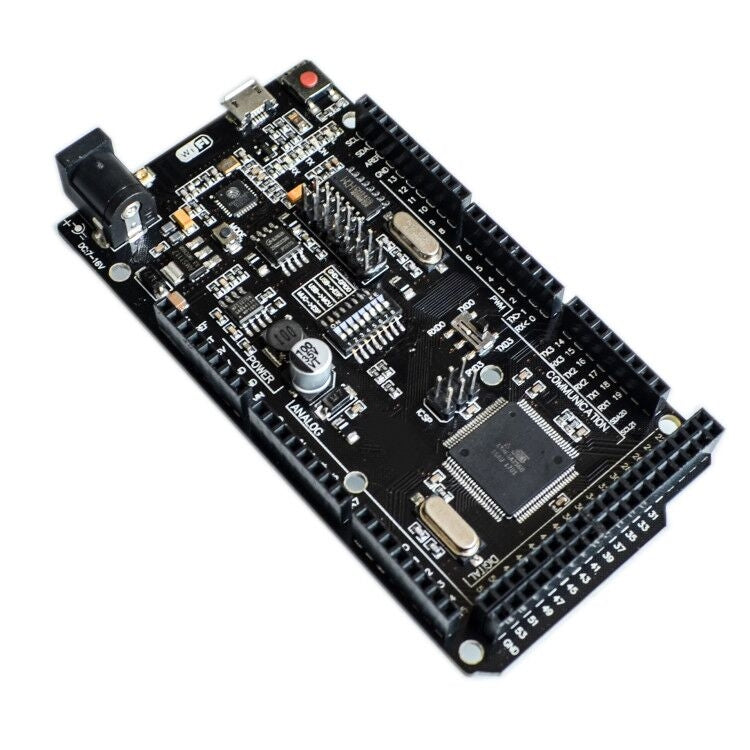

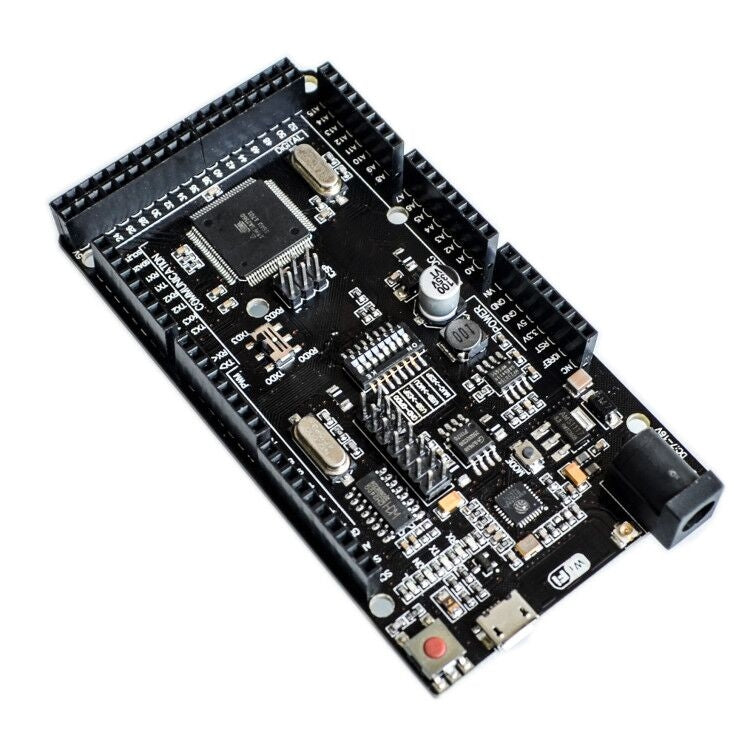

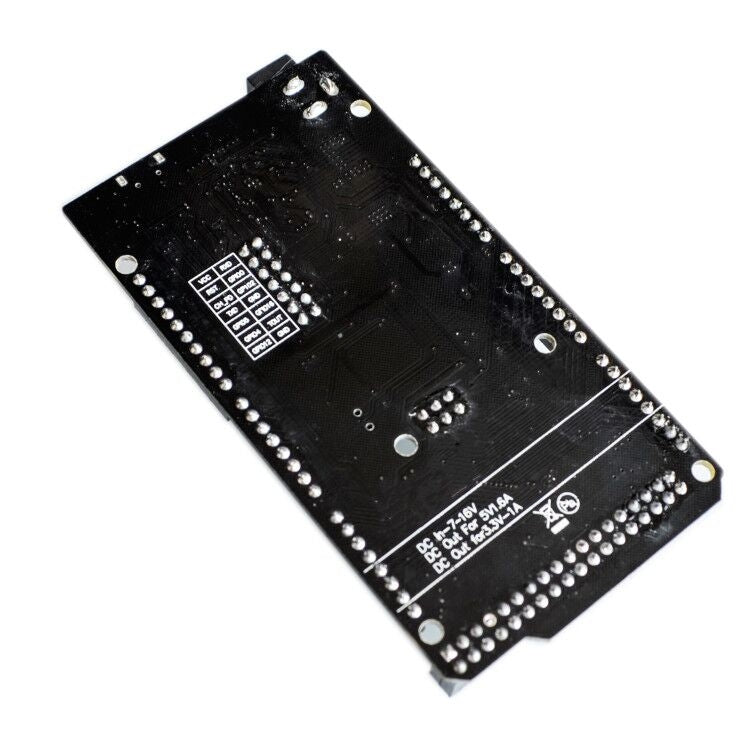

Mega WiFi R3 ATmega2560 with ESP8266 USB-TTL Arduino Compatible


It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently.

The operating mode is selected by means of DIP switches on-board:

Switch status and mode selection:



1

2

3

4

5

6

7

8

CH340 connect to ESP8266 (upload sketch)

OFF

OFF

OFF

OFF

ON

ON

ON

NoUSE

CH340 connect to ESP8266 (connect)

OFF

OFF

OFF

OFF

ON

ON

OFF

NoUSE

CH340 connect to ATmega2560 (upload sketch)

OFF

OFF

ON

ON

OFF

OFF

OFF

NoUSE

CH340 connect to Mega2560 COM3 connect to ESP8266

ON

ON

ON

ON

OFF

OFF

OFF

NoUSE

Mega2560+ESP8266

ON

ON

OFF

OFF

OFF

OFF

OFF

NoUSE

All modules work independent

OFF

OFF

OFF

OFF

OFF

OFF

OFF

NoUSE
